ISOLATED RS232

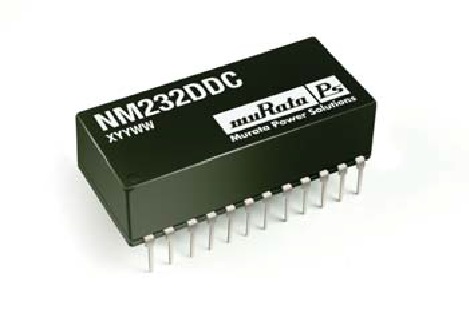

NM232DDC (Supplier: Murata)

NM232DDC.JPG    ♦ Q100+ = 22,00 EUR (3/2015)

    ♦ RoHs compliant


    ♦ Transmission rate 9.6kbps


    ♦ Isolation voltage 1.5kVrms


    ♦ Temperature range 0 to 70C


 STA
TUS: Part is going End of Life

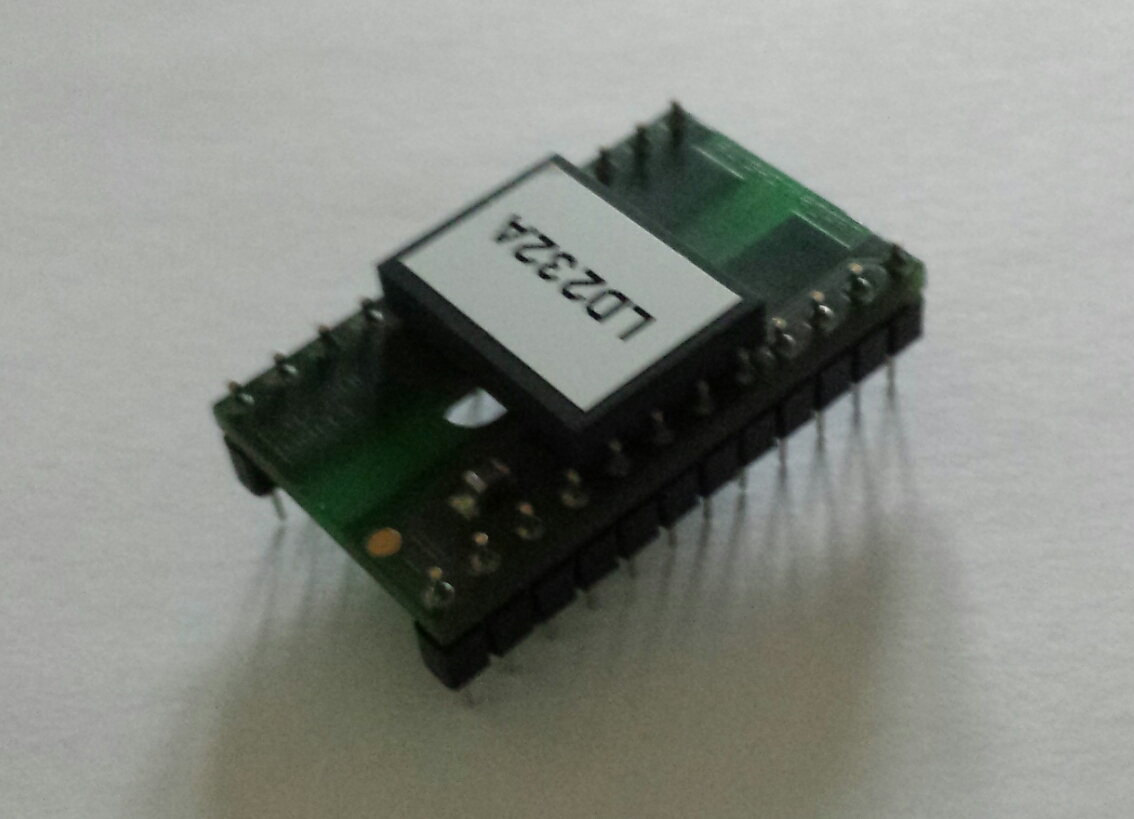

LD232A/B/C/D                 DataSheet.pdf

LD232A.JPG     ♦ Q100+ =22,00 EUR (D-Type, 3/2015)

    ♦ NM232DDC compatible
with improved features

    ♦ RoHs compliant, Low EMI (EN55022)

    ♦ Transmission rate 400kbps / 9.6kbps (A/D)

    ♦ Isolation voltage 2.5kVrms /
1.5kVrms (A/D)

    ♦ Temperature range
-40 to +85C  /  0 to 70C (A/D)



 STATUS: In production
, new design

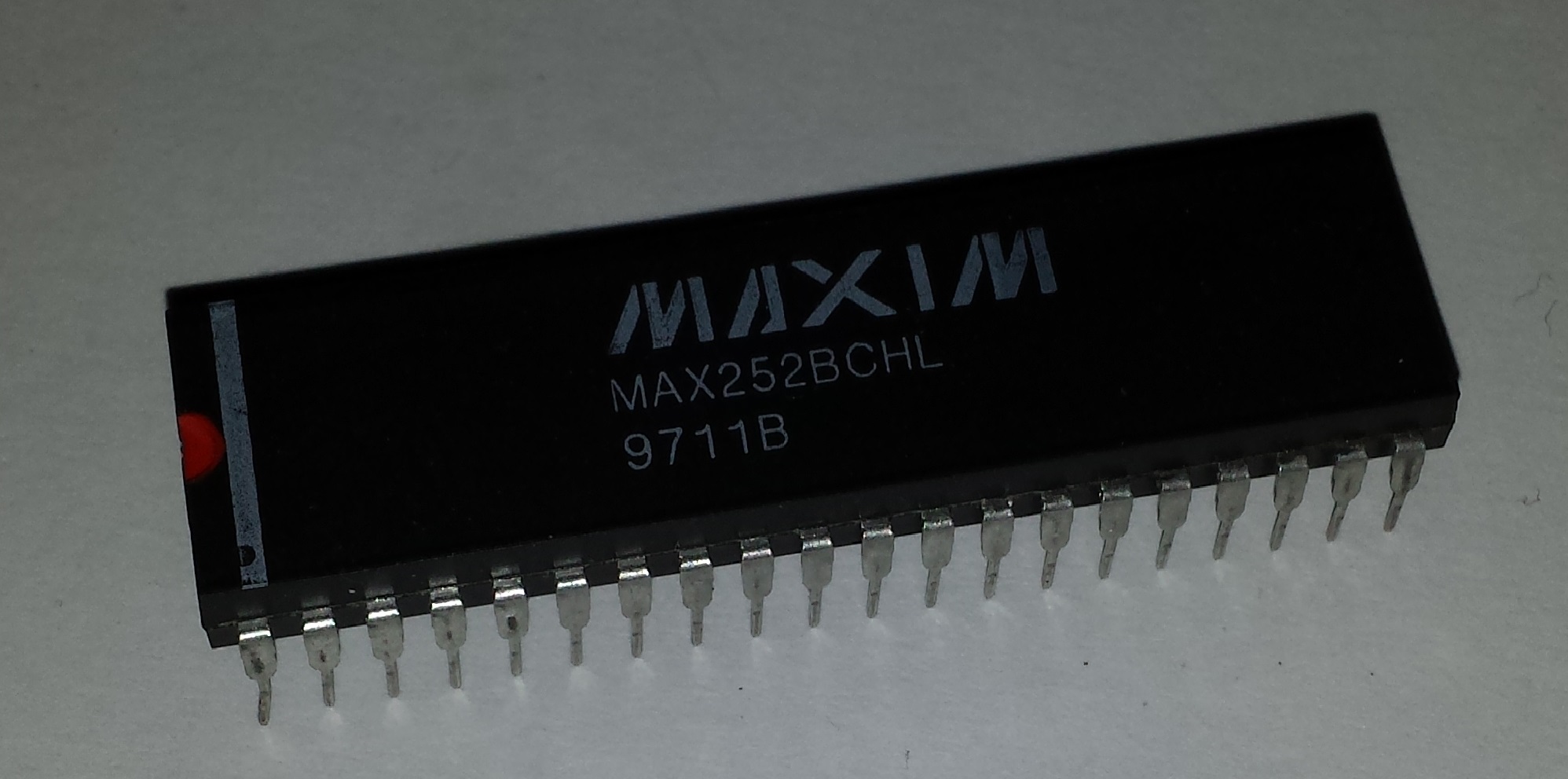

MAX252AEHL / MAX252BCHL (Supplier: Maxim)

MAX252.JPG    ♦ Q100+ available


    ♦ Dual RS232 transmitter/receiver system


    ♦ Transmission rate 19.2kbps / 9.6kbps (A/B)


    ♦ Isolation voltage
1260Vrms / 500Vrms (A/B)

    ♦ Temperature range -40 to +85C  /  0 to 70C (A/B)


 STA
TUS:  Part is End of Life

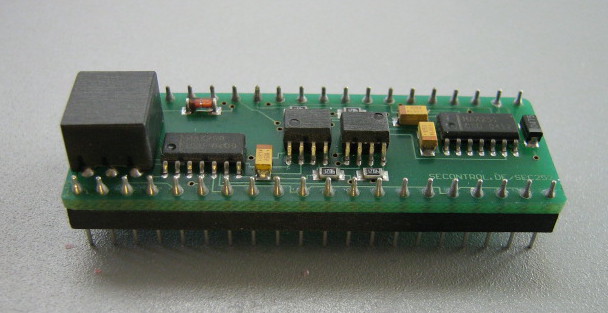

SEC252BCHL

 SEC252BCHL.JPG   MAX252 compatible with improved features

    ♦
RoHs compliant

    ♦ Transmission rate 19.2kbps / 57.6kbps (min/typ)


    ♦ Isolation voltage 500Vrms / 1000Vrms (min/typ)


    ♦ Temperature range 0 to 70C



 STATUS: In production, lead time 12 weeks

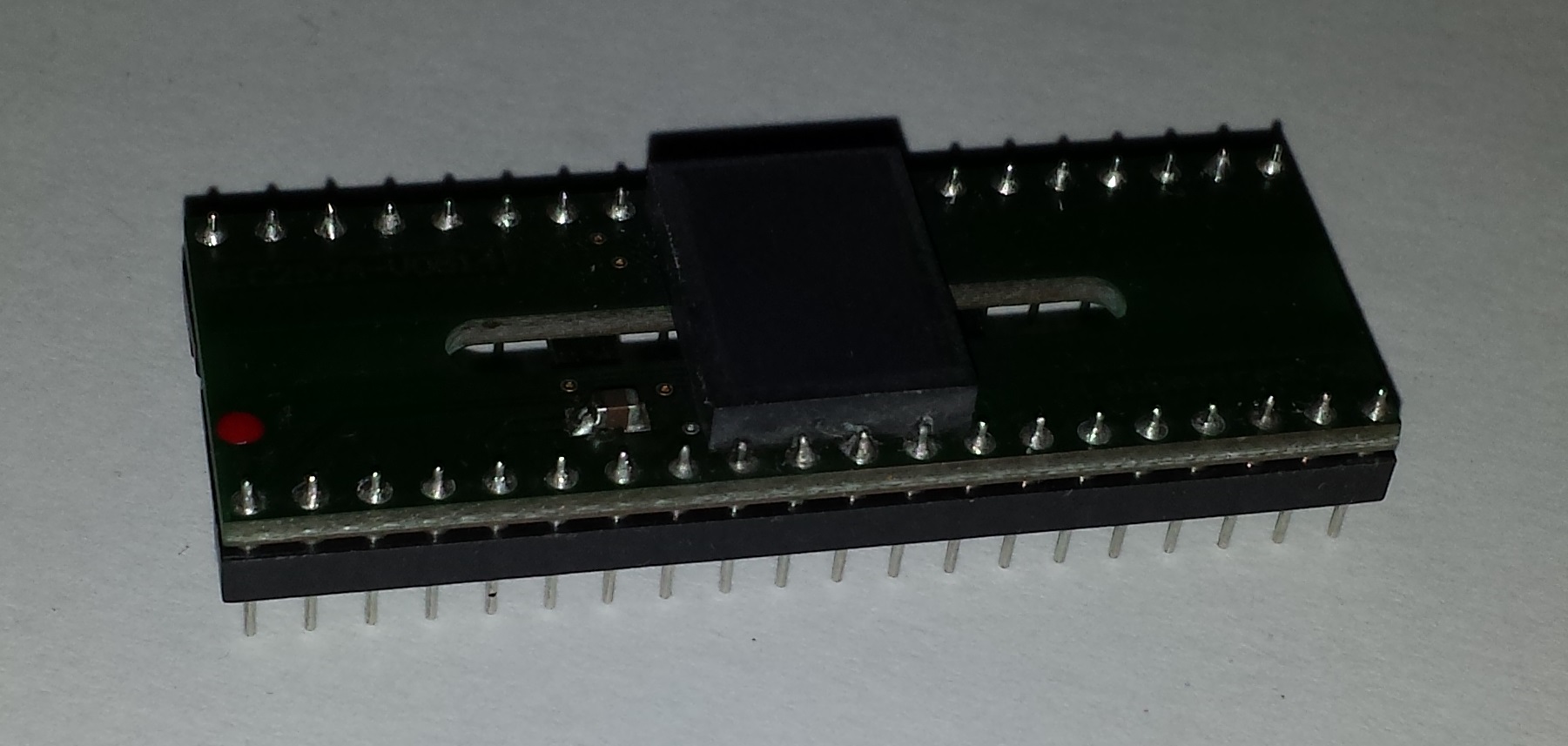

SEC252AD                       DataSheet.pdf

SEC252AD.JPG    ♦ MAX252 compatible with improved features

    ♦ RoHs compliant, Low EMI (EN55022)


♦ Transmission rate 38.4kbps

    ♦ Isolation voltage 1000Vrms

    ♦ Temperature range
0 to 70C


 STATUS: In production, new design




LD252A/B/C/D                DataSheet.pdf

LD252.JPG    ♦ MAX252 compatible with improved features

    ♦
RoHs compliant, Low EMI (EN55022)

    ♦ Transmission rate 400kbps / 9.6kbps (A/D)

    ♦ Isolation voltage 2.5kVrms / 1.5kVrms (A/D)


    ♦ Temperature range
-40 to +85C  /  0 to 70C (A/D)



 STATUS: In production, new design
